Small spacing LED display

Small spacing LED display

Huabangying optoelectronics always focuses on the R & D and production of LED full-color display screen, and constantly pays attention to product quality and innovation. The professional R & D team, which accounts for 10% of the total employees of the company, has laid the foundation for the R & D of new products of Huabang Ying optoelectronics and the special application of customers.

  • P 0.9 small spacing LED display
  • P1.2 small spacing LED display
  • P1.5 small spacing LED display
  • P1.6 small spacing LED display
  • P1.8 small spacing LED display
  • P1.9 small spacing LED display
Product Features
  • 1

    The use of high-quality components and fine processing technology can effectively reduce the dead light rate.

  • 2

    The power supply and signal double backup system protect the product for 7*24 hours of continuous and stable operation. It is the safest and most reliable.

  • 3

    The gray scale of the display is almost perfect at low brightness, and the level and vividness of the displayed screen is higher than that of the traditional display.

  • 4

    The high pixel density display unit with micro pixel pitch can be spliced wirelessly and can support 2K, 4K and ultra-high resolution display.

  • 5

    Even if it is reduced to 500-300cd/m2, it can still guarantee high gray levels.

  • 6

    A black matte lamp and a corrugated light-absorbing mask are adopted, and the reflection is small under a bright light environment, and the picture is still clearly visible.

  • 7

    It automatically adapts to the photosensitive adjustment device and does not affect the display screen due to the environment.

  • 8

    The picture is stable with no ripples and no black screen, the video picture is smooth and delicate, and the edges of the dynamic display picture are clear.It has good dynamic expressiveness, accurately restores the image information, and brings maximum visual enjoyment.

Technical Parameters
  • P 0.9 small spacing LED display
  • P1.2 small spacing LED display
  • P1.5 small spacing LED display
  • P1.6 small spacing LED display
  • P1.8 small spacing LED display
  • P1.9 small spacing LED display
Product number HBY-HN0.9 brightness 600-800nits Full screen resolution 1137777
Module size 150*168.75mm Contrast 7000:1 Average power 217
Pixel pitch 0.9375mm Refresh rate 3840 Service life 10W hours
Product number HBY-BN1.2 brightness 600-800nits Full screen resolution 640000
Module size 150*168.75mm Contrast 7000:1 Average power 208
Pixel pitch 1.25mm Refresh rate 3840 Service life 10W hours
Product number HBY-BN1.56 brightness 600-800nits Full screen resolution 409600
Module size 200*150mm Contrast 7000:1 Average power 208
Pixel pitch 1.56mm Refresh rate 3840 Service life 10W hours
Product number HBY-BN1.67 brightness 600-800nits Full screen resolution 359856
Module size 200*150mm Contrast 7000:1 Average power 200
Pixel pitch 1.667mm Refresh rate 3840 Service life 10W hours
Product number HBY-BN1.875 brightness 600-800nits Full screen resolution 284444
Module size 150*168.75mm Contrast 7000:1 Average power 200
Pixel pitch 1.87mm Refresh rate 3840 Service life 10W hours
Product number HBY-BN1.9 brightness 600-800nits Full screen resolution 270420
Module size 200*150mm Contrast 7000:1 Average power 200
Pixel pitch 1.932mm Refresh rate 3840 Service life 10W hours

Ultra HD perfect picture quality

The extremely high resolution of the small-pitch LED brings delicate display effects, and it is also the beautiful reflection of the end of the new generation of ultra-high-definition LED display

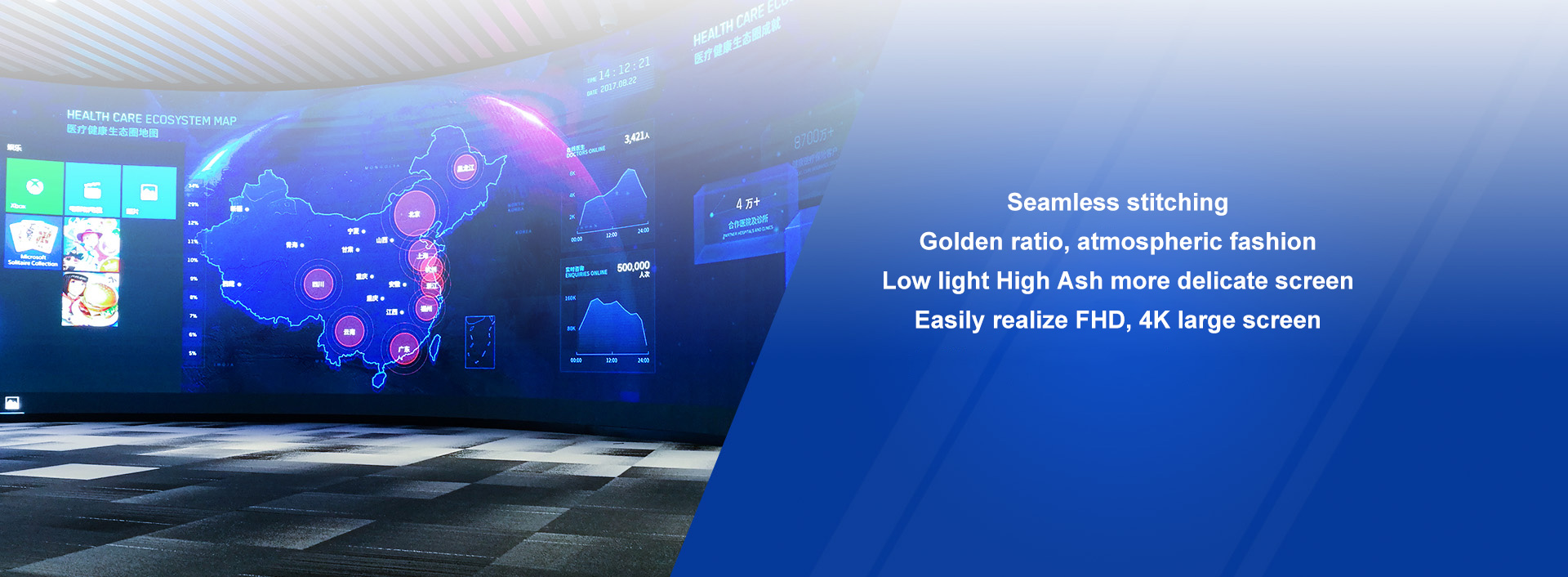

Easily realize FHD, 4K large screen

The small-pitch LED display can be any size, splicing in any direction, and a variety of video source selections. It can easily realize FHD and 4K large screens.




Seamless stitching

Using a unique link body, the gap of the box can be fine-tuned to show the perfect picture quality. The mold is formed at one time, and the processing accuracy is ±0.1mm, which can easily achieve seamless splicing.

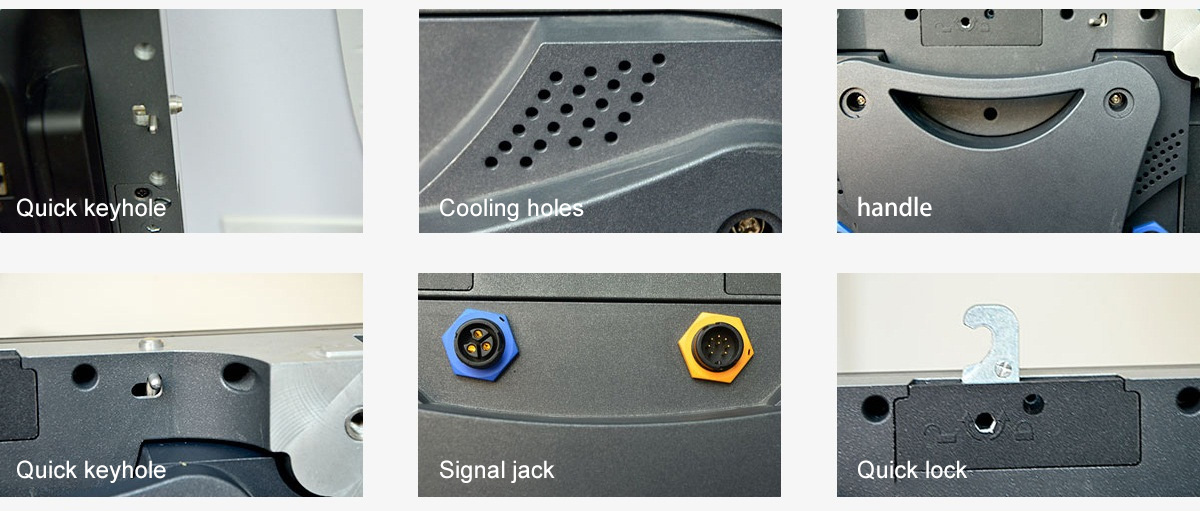

Multi-function link
Multi-functional connector, fast, simple and convenient, multi-functional connector, integrating connection and fine-tuning of the gap into one, all for the convenience of customers


Product parameter details

Product number HBY-HN0.9 HBY-HN1.25 HBY-HN1.56 HBY-HN1.875 HBY-BN1.667 HBY-BN1.923
Module composition Pixel structure SMD0808 SMD1010 SMD1010 SMD1010 SMD1010 SMD1415
Pixel pitch (mm) 0.9375 1.25 1.56 1.875 1.667 1.923
Full screen resolution (dot/㎡) 113777 640000 409600 284444 359856 270420
Module size (mm) (W*H) 150*168.75mm 150*168.75mm 150*168.75mm 150*168.75mm 200*150mm 200*150mm
Module resolution (W*H) 160*180dots 120*135dots 96*108dots 80*90dots 120*90dots 104*78dots
Cabinet composition Cabinet size (mm) (W*H*D) 600*337.5*5mm 400*300*75mm 400*300*75mm
Cabinet resolution (W*H) 640*360dots 480*270dots 384*216dots 320*180dots 240*180dots 204*156dots
Cabinet weight (KG) 8.5±0.5KG 6±0.5KG 6±0.5KG
Optical parameters White balance brightness (nits) 600-800CD/㎡
Color temperature (K) 3000-10000 adjustable
Viewing angle (°) Horizontal viewing angle 160° Vertical viewing angle 140°
Chroma uniformity Within ±0.003Cx, Cy
Contrast 7000:1
Electrical parameters Peak power consumption (W/㎡) 650 650 600 600 600 600
Average power consumption (W/㎡) 217 208 200 200 200 200
Power demand AC100-240V (50-60Hz)
Processing performance scanning method 40S constant current drive 30S constant current drive 32S constant current drive 32S constant current drive 30S constant current drive 32 constant current drive
Frame change frequency (Hz) 50&60
Refresh frequency (Hz) 3840
Use parameters Service life 100,000 hours
Working stability -10-40
Storage stability range -20-60
certified product  Picture 1.png
Small spacing LED display Application field


Educational publicity: interactive systems such as campus areas, training institutions, etc.

Public places: information display in airports, railways, subways, highways and other transportation industries, libraries, museums, shopping malls and other places.

Commercial presentations: TV studios, large-scale performances and commercial conventions, hotel lobbies, enterprises and institutions.

Government departments: convenient publicity, handling guides, open government affairs, etc.
