Outdoor LED display

Outdoor LED display

Huabangying optoelectronics always focuses on the R & D and production of LED full-color display screen, and constantly pays attention to product quality and innovation. The professional R & D team, which accounts for 10% of the total employees of the company, has laid the foundation for the R & D of new products of Huabang Ying optoelectronics and the special application of customers.

  • P3 outdoor full color LED display
  • P4 outdoor full color LED display
  • P5 outdoor full color LED display
  • P6 outdoor full color LED display
  • P8 outdoor full color LED display
  • P10 outdoor full color LED display
Product Features
  • 1

    Magnetic suction structure, front maintenance bracket, maintenance tools can directly suck the module, pull it out horizontally, and can be removed in three seconds, which is convenient and fast. Any module, power supply and receiving card can be maintained from the front.

  • 2

    The whole box can be pre-installed without maintenance channels, and the LED display can be installed close to the wall.

  • 3

    The module adopts magnetic suction structure, which can be quickly removed and installed from the box, and the speed is 5 times faster than the general box on the market.

  • 4

    Fixed installation on the wall, directly using the old structure, perfect replacement for LCD, saving time and effort. 16:9 perfect ratio, 4 cabinets are assembled into 55 inches, you can directly use the original LCD video source.

  • 5

    Dual backup of power supply, system card and aviation head socket, using dual signal input, automatic detection of signal integrity. When one power supply fails, the other signal automatically intervenes to ensure the normal operation of the LED display.

  • 6

    The hidden handles on the top and sides make it easy to extract the cabinet with one hand and one hand. There are anti-leakage strips around the box to make the stitching more perfect.

  • 7

    Extreme precision, die-cast aluminum box, perfect seamless, alignment groove + positioning pin design, foolproof.

Technical Parameters
  • P3 outdoor full color LED display
  • P4 outdoor full color LED display
  • P5 outdoor full color LED display
  • P6 outdoor full color LED display
  • P8 outdoor full color LED display
  • P10 outdoor full color LED display
Product number HBY-YN3 brightness 4500-7500nits Full screen resolution 111111
Module size 192*192mm Contrast 7000:1 Average power 420
Pixel pitch 3mm Refresh rate 1920 Service life 10W hours
Product number HBY-YN4 brightness 4500-7500nits Full screen resolution 62500
Module size 256*128mm Contrast 7000:1 Average power 385
Pixel pitch 4mm Refresh rate 1920 Service life 10W hours
Product number HBY-YN5 brightness 4500-7500nits Full screen resolution 40000
Module size 320*160mm Contrast 7000:1 Average power 385
Pixel pitch 5mm Refresh rate 1920 Service life 10W hours
Product number HBY-YN6 brightness 4500-7500nits Full screen resolution 27777
Module size 192*192mm Contrast 7000:1 Average power 320
Pixel pitch 6mm Refresh rate 1920 Service life 10W hours
Product number HBY-YN8 brightness 4500-7500nits Full screen resolution 15625
Module size 256*128mm Contrast 7000:1 Average power 320
Pixel pitch 8mm Refresh rate 1920 Service life 10W hours
Product number HBY-YN10 brightness 4500-7500nits Full screen resolution 100000
Module size 320*160mm Contrast 7000:1 Average power 320
Pixel pitch 10mm Refresh rate 1920 Service life 10W hours





Product detailed parameters

Product number HBY-YN3 HBY-YN4 HBY-YN6 HBY-YN8 HBY-YN5 HBY-YN10
Module composition Pixel structure SMD1919 SMD1919 SMD2727 SMD3528 SMD2525 SMD3535
Pixel pitch (mm) 3 4 6 8 5 10
Full screen resolution (dot/㎡) 111111 62500 27777 15625 40000 100000
Module size (mm) (W*H) 192*192mm 256*128mm 192*192mm 256*128mm 320*160mm 320*160mm
Module resolution (W*H) 64*64dots 64*32dots 32*32dots 32*16dots 64*32dots 320*160dots
Cabinet composition Cabinet size (mm) (W*H*D) 768 * 798 * 95mm 960 * 960 * 95mm 960 * 960 * 95mm
Cabinet resolution (W*H) 256*192dots 192*192dots 128*128dots 96 * 96dots 192*192dots 96 * 96dots
Cabinet weight (KG) 15±0.5KG 23±0.5KG 23±0.5KG
Optical parameters White balance brightness (nits) 4500-7500CD/㎡
Color temperature (K) 3000-10000 adjustable
Viewing angle (°) Horizontal viewing angle 160° Vertical viewing angle 140°
Chroma uniformity Within ±0.003Cx, Cy
Contrast 7000:1
Electrical parameters Peak power consumption (W/㎡) 1350 1150 1000 1000 1150 1000
Average power consumption (W/㎡) 420 385 320 320 385 320
Power demand AC100-240V(50-60Hz)
Processing performance scanning method 16S constant current drive 8S 恒流驱动 4S 恒流驱动 4S 恒流驱动 8S 恒流驱动 4S 恒流驱动
换帧频率(Hz) 50&60
刷新频率(Hz) 1920
使用参数 使用寿命 10万小时
工作稳定范围 -10-40
储存稳定范围 -20-60
产品认证  Picture 1.png

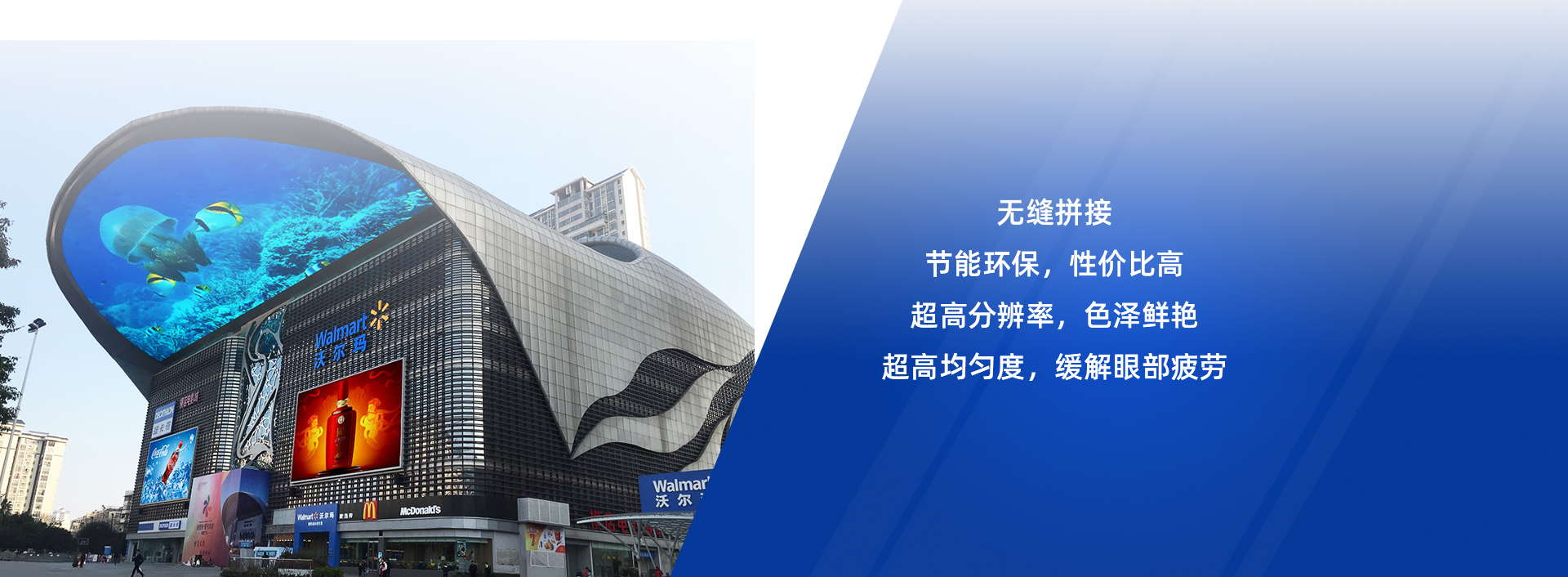

Outdoor LED display Application field

Outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions and other display systems.

Image promotion in public places: information display in airports, railways, subways, highways and other transportation industries, libraries, museums, shopping malls and other places.

Commercial demonstrations, commercial real estate and other large-screen display equipment, TV studios, large-scale performances and commercial exhibitions, hotel lobbies, enterprises and institutions.

Government departments: convenient publicity, handling guides, open government affairs, etc.
